Trusscore SlatWall is a PVC wall-mounted organization system that turns garage, workshop, and utility walls into functional storage. Made from the same high-strength polymer as Trusscore Wall&CeilingBoard, SlatWall panels accept standard 3" slatwall hooks, baskets, shelves, and tool holders, supporting up to 75 lbs per square foot. 100% waterproof and mould-resistant. Available in white and grey. Available at Windsor Plywood locations across Canada.
Features
- Supports up to 75 lbs per square foot -- heavy-duty storage capacity
- Compatible with any standard 3" slatwall accessories -- hooks, baskets, shelves, and tool holders
- 100% waterproof, mould-resistant PVC -- suitable for garages, basements, and wet environments

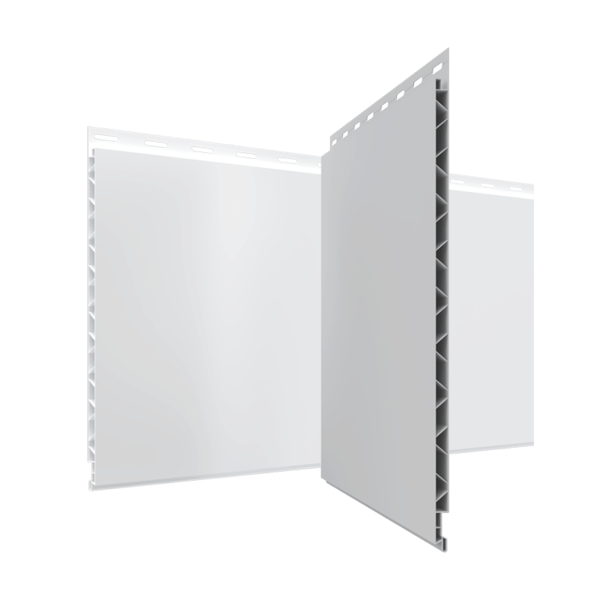

- Integrates seamlessly with Trusscore Wall&CeilingBoard on the same wall

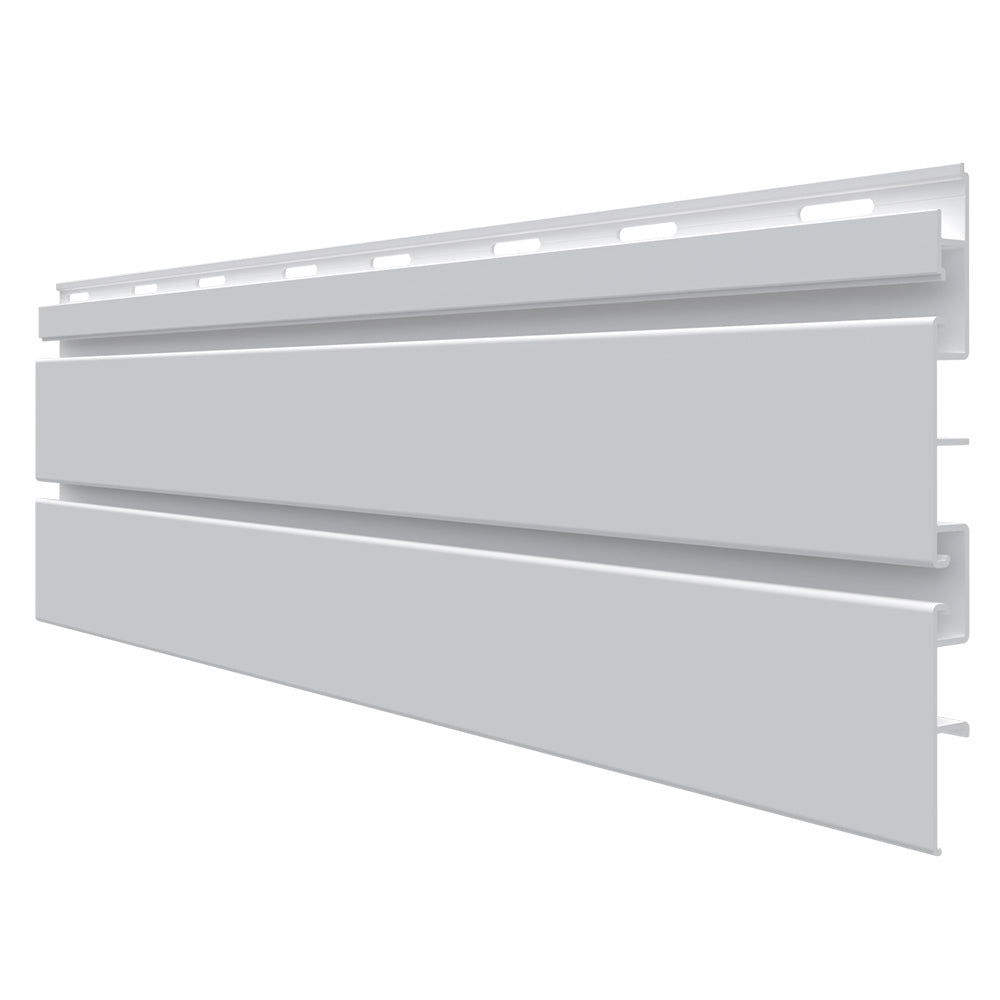

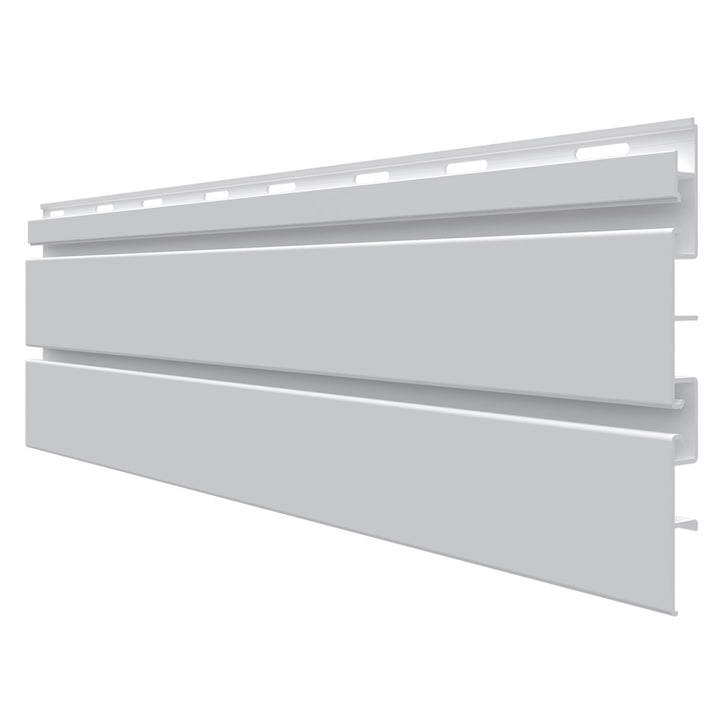

- 8 ft panel length, 7-1/4" wide total (6" exposed face once installed), 5/8" thick
- Available in white and grey for design flexibility
Specifications
| Material |
Rigid PVC -- high-strength polymer |
| Thickness |
5/8" |
| Panel Size |
8 ft long x 7-1/4" wide (6" exposed face) |
| Load Capacity |
Up to 75 lbs per square foot |
| Accessory Compatibility |
Standard 3" slatwall accessories |
| Colours |
White and Grey |
| Availability |
In-store -- confirm stock and accessories at your local branch |
Common Uses

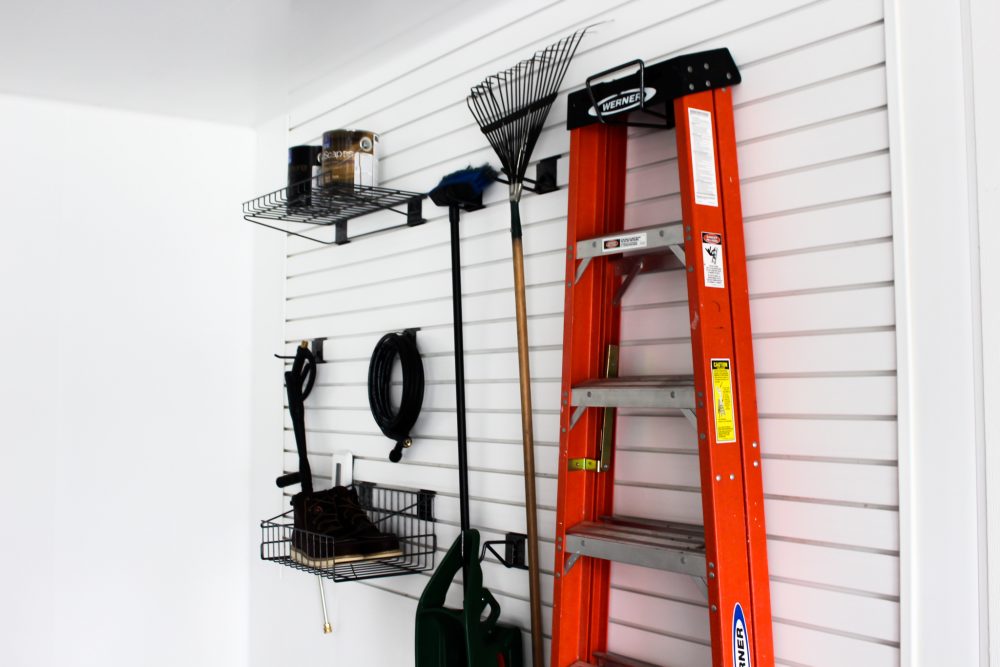

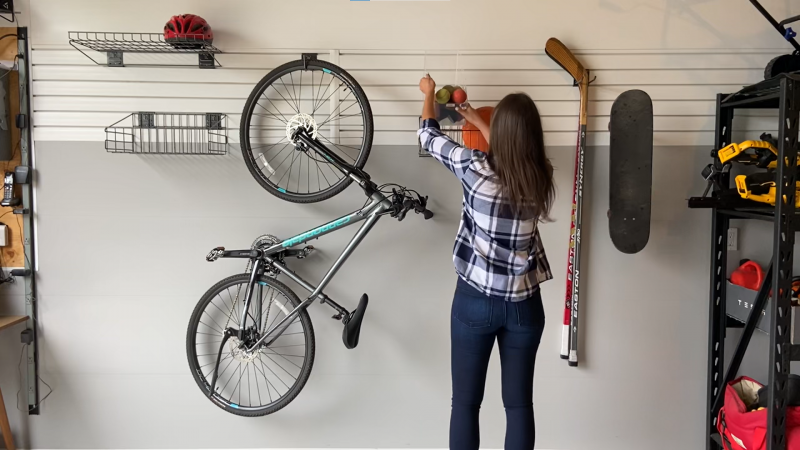

Trusscore SlatWall is used in garage organization, workshop tool storage, laundry rooms, retail displays, and commercial storage areas. Install as a single track for one row of hooks, a half-wall section for a dedicated tool zone, or a full wall for maximum storage capacity. Pairs with Trusscore Wall&CeilingBoard above the SlatWall zone for a complete wall system.
Pro Tips
- Install SlatWall in the lower 4-5 feet of the wall (the working zone) and Trusscore Wall&CeilingBoard above. This gives you organized, accessible storage at arm height and a clean, finished surface above.
- Screw SlatWall directly into wall studs or over existing drywall. Use the same corrosion-resistant truss-head screws recommended for Trusscore Wall&CeilingBoard.
- Start your layout with the items you need to store and work backward to determine how many linear feet of SlatWall you need. A full wall is not always necessary -- even a single 4-foot section can organize an entire workbench area.
Frequently Asked Questions
What is the difference between Trusscore SlatWall and MDF slatwall?
Trusscore SlatWall is 100% waterproof PVC -- it will never swell, delaminate, or grow mould. MDF slatwall absorbs moisture and degrades in garages and basements. Trusscore is more durable, holds more weight, and lasts significantly longer in any environment with humidity or temperature variation.
Can I use third-party slatwall accessories?
Yes. Trusscore SlatWall is compatible with any standard 3" slatwall hooks, baskets, and shelves. You are not limited to Trusscore-branded accessories.
