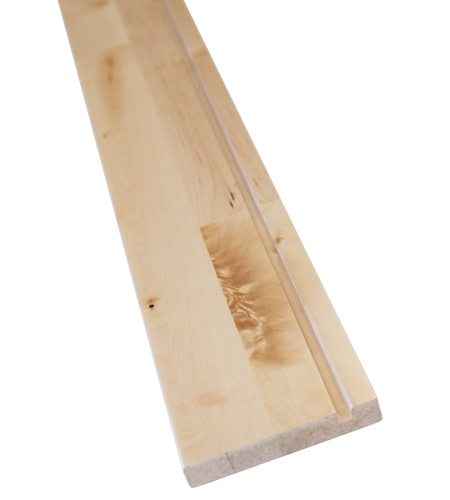

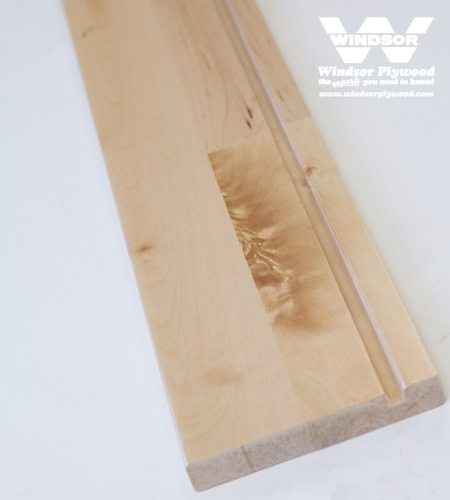

Pre-finished Birch Drawer Sides are ready-to-assemble drawer box components for kitchen, bathroom, and furniture cabinetry. Pre-finished with a clear coat and machined with a 5.2mm dado groove to accept standard drawer bottoms, these sides eliminate the finishing step and speed up drawer box assembly. Available at Windsor Plywood locations across Canada.
Features
- Pre-finished birch -- no sanding or coating required before assembly

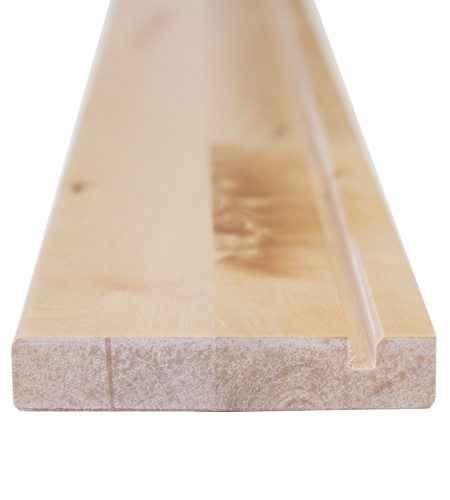

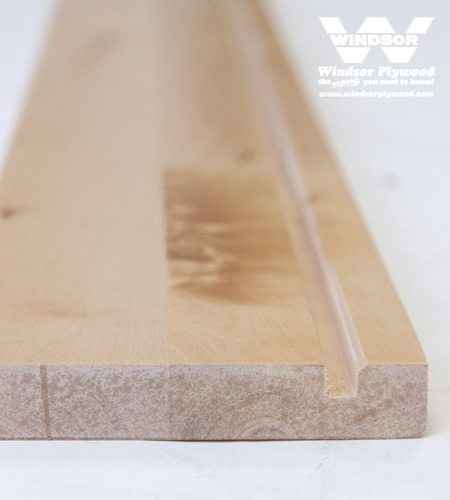

- 5.2mm dado groove pre-machined to accept standard 1/4" (5.2mm) drawer bottom panels
- 5/8" (16mm) thickness -- standard for drawer box construction
- Available in multiple heights to suit different drawer configurations
- Compatible with standard undermount and side-mount drawer slides (Blum, Richelieu)
Specifications
| Material |
Birch -- pre-finished |
| Thickness |
5/8" (16mm) |
| Dado Groove |
5.2mm for drawer bottom panel |
| Heights |
Multiple heights available -- confirm at your local branch |
| Availability |
In-store -- confirm current stock |
Common Uses
Used for building and replacing drawer boxes in kitchen cabinets, bathroom vanities, and furniture. The pre-finished surface and pre-machined dado allow fast assembly -- cut sides and front/back to length, glue and nail the box, slide in the bottom panel, and the drawer is ready for slide installation.
Pro Tips
- Calculate drawer box width as the cabinet opening width minus the combined clearance required by your drawer slides (typically 1" total for Blum undermount slides -- 1/2" per side).
- Cut the drawer bottom panel 1/8" shorter than the full dado-to-dado measurement in both directions to allow for wood movement without binding.
- Use 1-1/4" brad nails and wood glue for drawer box assembly. Clamp square and check diagonals before the glue sets.
