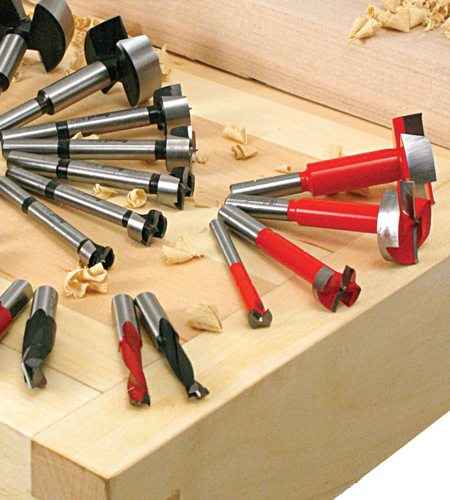

Freud Forstner Bits drill clean, flat-bottomed holes in wood for hardware installation, dowel joinery, and decorative work. Freud's precision-ground carbide cutting edges stay sharp significantly longer than standard steel Forstner bits, particularly in hardwoods and abrasive sheet goods. Designed for use in drill presses and hand-held drills. Available at Windsor Plywood locations across Canada.
Features
- Precision-ground carbide cutting edges -- stay sharp longer than HSS, especially in hardwoods
- Flat-bottomed bore -- ideal for hinge cups, counterbores, and partial-depth holes
- Clean entry and exit cuts with minimal tearout
- Compatible with drill presses and hand-held drills
- Suitable for drilling pocket holes, angled holes, and overlapping holes

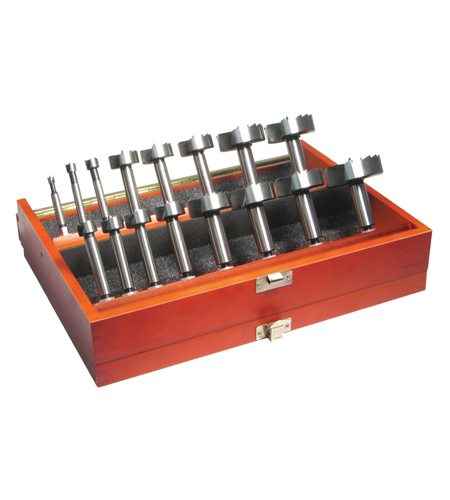

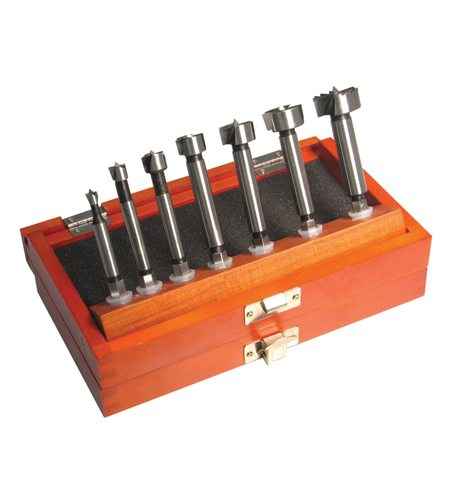

- Available in individual sizes and sets -- confirm current stock at your local branch
Specifications
| Brand |
Freud |
| Product Type |
Forstner bits |
| Cutting Material |
Precision-ground carbide |
| Shank |
3/8" round shank (standard) |
| Available Sizes |
Confirm with your local Windsor Plywood location |
| Availability |
In-store -- individual sizes and sets |
Common Uses
Forstner bits are used to drill European hinge cups (35mm is the standard cup bore), counterbores for bolt heads, flat-bottomed dowel holes, and decorative partial-depth holes in furniture and cabinetry. They excel at boring clean overlapping holes, which is common in mortise work and decorative inlay.
Pro Tips
- Use a drill press for large-diameter Forstner bits (over 1") -- hand-held drilling above that size is difficult to control and risks tearout.
- Clear chips frequently, especially in deep bores. Forstner bits do not eject chips like twist bits -- let the bit cool between plunges to prevent scorching.
- Back the workpiece with scrap wood to prevent blowout on the exit side of through-holes.
Frequently Asked Questions
What size do I need for European cabinet hinges?
Standard European (Blum, Hettich) hinge cups require a 35mm Forstner bit bored to a depth of approximately 12-13mm. Confirm the specific depth with your hinge manufacturer specifications.
Can I use Forstner bits in a hand-held drill?
Yes, for smaller diameters (up to about 1"). Larger sizes are best used in a drill press where the feed rate and alignment can be controlled precisely. Clamp the workpiece securely regardless of method.
